Panasonic AC SERVO DRIVER MODEL MSDA023A1A
Panasonic AC Servo Driver, model MCDJT3230
Panasonic AC Servo Driver, model MCDJT3230.
Purpose: Used to control the precise movement of servo motors in industrial automation applications, enhancing productivity in manufacturing, robotics, and more.
Specifications: Input voltage 220-240V (single phase), output voltage 0-240V, 1.2kW power, 50/60Hz input frequency, 0-500Hz output frequency.
Panasonic AC Servo Driver, model number MADCT1505B05
Panasonic AC Servo Driver, model number MADCT1505B05. This industrial component is primarily used in automation for precise motor control, specifically for SMT (Surface Mount Technology) pick-and-place machines such as the Panasonic CM402, CM602, and NPM series.
Technical Specifications
Based on the label and technical data, the key specifications are:
Power Output: 200W (0.2kW).
Input Requirements: 200–240V, supporting both single-phase (1.30A) and three-phase (1.10A) at 50/60Hz.
Output: Three-phase, 92V, 1.6A, with a frequency range of 0–333.3Hz.
Manufacturer: Matsushita Electric Industrial Co., Ltd. (now Panasonic Corporation), made in Japan.
Panasonic AC Servo Driver, specifically model MBDLN25BE from the MINAS A6 series
Panasonic AC Servo Driver, specifically model MBDLN25BE from the MINAS A6 series. This device is designed to control a 400W servo motor and features EtherCAT connectivity for industrial networking.
Technical Specifications
Based on the label and matching product information:
Model Number: MBDLN25BE
Power Output: 400 W (0.4 kW)
Input Requirements:
Voltage: 200–240 V
Phase: 1
(single-phase) or 3 (three-phase)
Current (F.L.C): 3.7 A (1) or 2.1 A (3)
Frequency: 50/60 Hz
Output Capabilities:
Voltage: 0–240 V
Phase: 3
Current: 2.6 A
Frequency: 0–541.7
PANASONIC AC SERVO MOTOR MSMD042P1A
PANASONIC AFP12247CCE Programmable Logic Controller (PLC) 100-240V | Industrial Automation & Control
PANASONIC AFP1402 PLC Module | Industrial Automation & Control

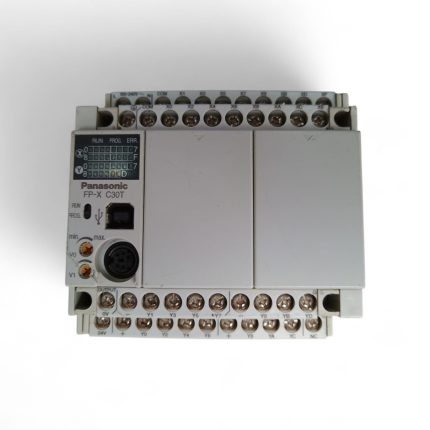

PANASONIC AFPX-C30T Programmable Logic Controller (PLC) 100-240V | Industrial Automation & Control

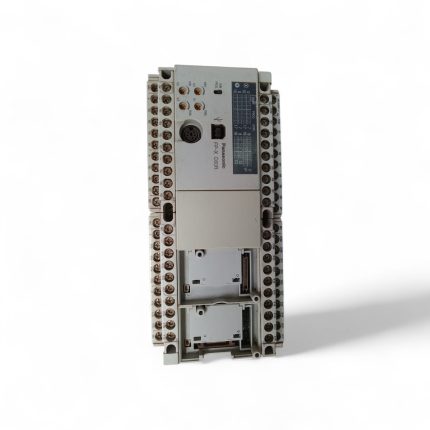

Panasonic AFPX-C60R PLC (Programmable Logic Controller) Control Unit
